Application:

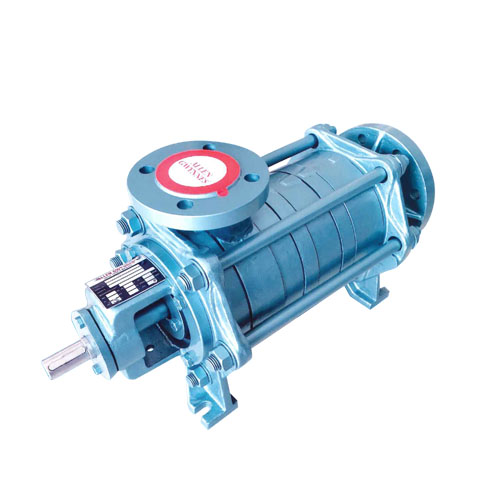

The Allen Gwynnes OT pump is a side channel pump capable of handling gas along with medium and operates at a low noise level. This pump is also very suitable for positive suction heads below 0.5 meters. This series offers various material options with uniform dimensions and performance characteristics, along with exchangeable standard components. These pumps are used in applications such as the palm oil industry, pharmaceuticals, chemicals, and the petrochemical market. The AGOT design is optimized for low NPSH and positive suction head. This pump is particularly suitable for pumping liquids under vapor pressure, such as condensate, refrigerants, and boiler feed water.

Technical Data:

• Capacity: 35 m3/hr (max)
• Head: 354 meters (max)
• Speed: 1800 rpm (max)
• Temperature:
  – 120 °C (max)
  – 180 ºC (max) for the standard material (Higher temperature design upon request)
• Casing Pressure: PN 40
• Shaft Seal: Mechanical Seal
• Flange Type: DIN 2501 PN 40
• Bearing Type:
  – Sleeve Bearing (Pump End)
  – Deep Grove Ball Bearing (Drive End)
• Direction Of Rotation: Anti-Clockwise (Looking On Shaft End)
