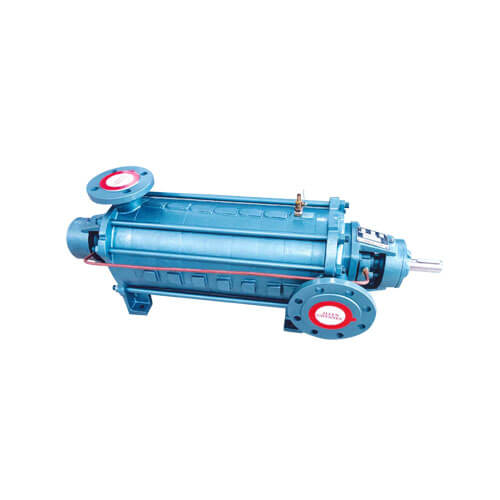

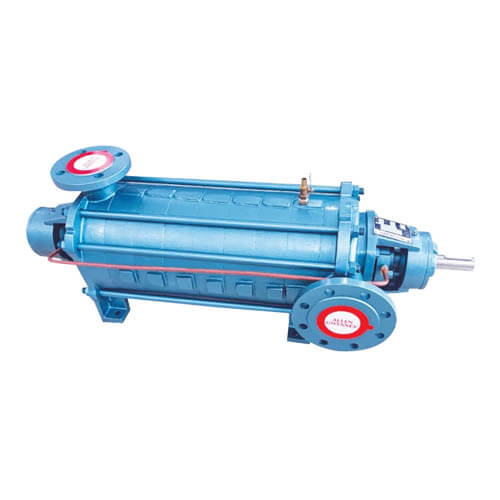

Horizontal Multistage Centrifugal Pumps – AGBF 40 / 50 / 65 Series

Description:

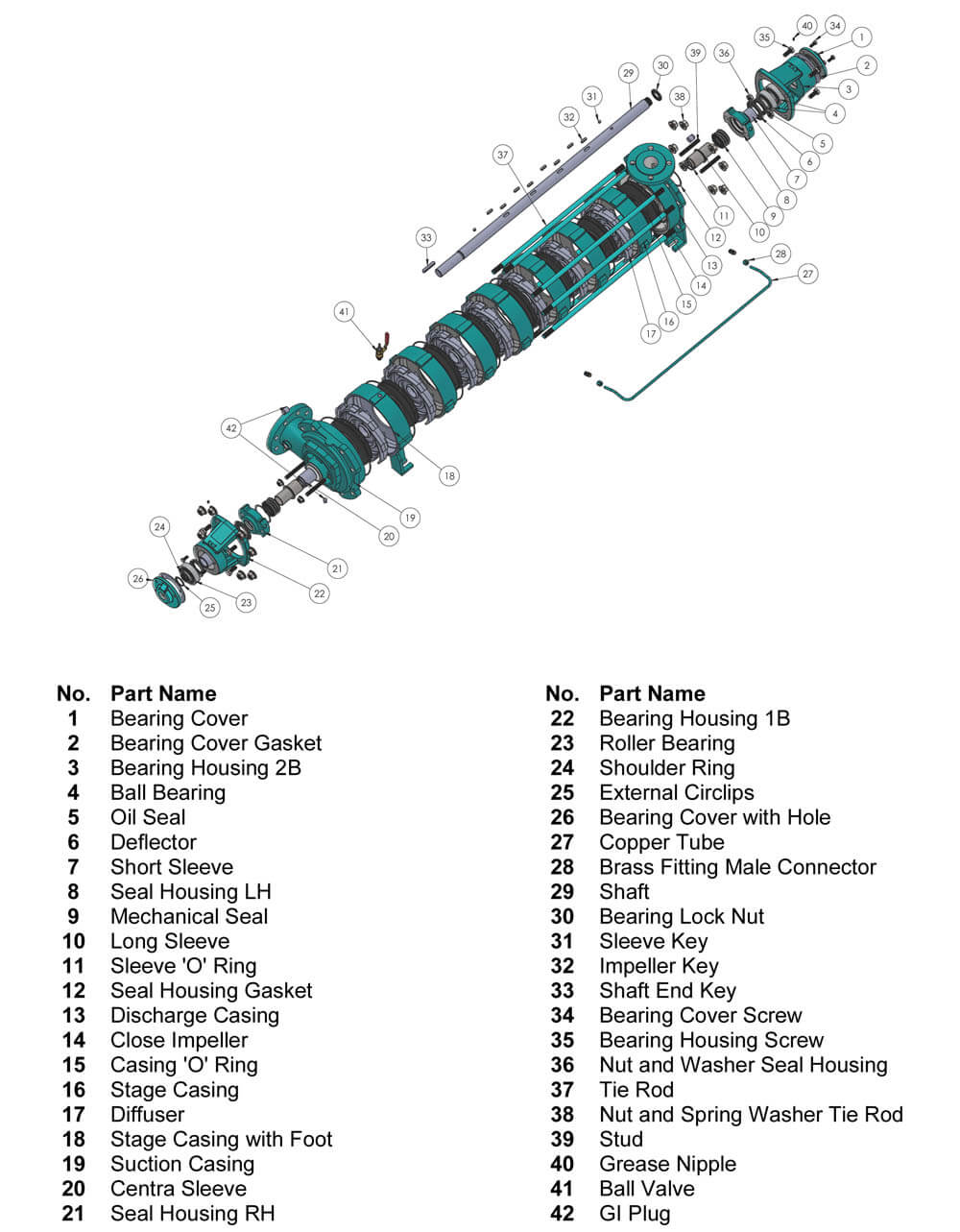

Allen Gwynnes horizontal multistage pump features a sectional casing and a closed impeller. The impeller and diffusers are interchangeable between stages. The structure of these pumps is compact and reasonable. This pump design features high efficiency and low energy consumption.

Technical Data:
  • Capacity: 110 m3/hr
  • Head: 395 meters (max)
  • Speed: 3600 rpm
  • Temperature: Max 190 °C, depending on the shaft sealing and construction material
  • Casing Pressure: Max 40 bar, depending on the operating temperature
  • Shaft Seal: Gland Packing or Mechanical Seal
  • Flange Type:
    – Suction Flange: DIN2501 PN16
    – Discharge Flange: DIN2501 PN40
  • Bearing Type:
    – Ball Bearing (Pump End)
    – Roller Bearing (Drive End)

  • Direction of Rotation: Clockwise (Looking on shaft end)

Category: Tags: ,

Applications

  • Boiler Feed Water Plants
  • Pressure Raising Plants
  • Water Supply Plants
  • Heating Plants
  • Irrigation Plants
  • Purification Plants
  • Hot and Cold-Water Circulation
  • Fire Fighting
  • Condensate Plants
Flanges:
  • A) Suction side flange PN16 (DIN2533) and the discharge side flange PN40 (DIN2535).
  • B) The flanges can be drilled to ANSI B16.1 class 250, on request.
Bearing:
  • One roller bearing on the shaft end side and two deep groove ball bearings on the discharge side, both lubricated by grease.

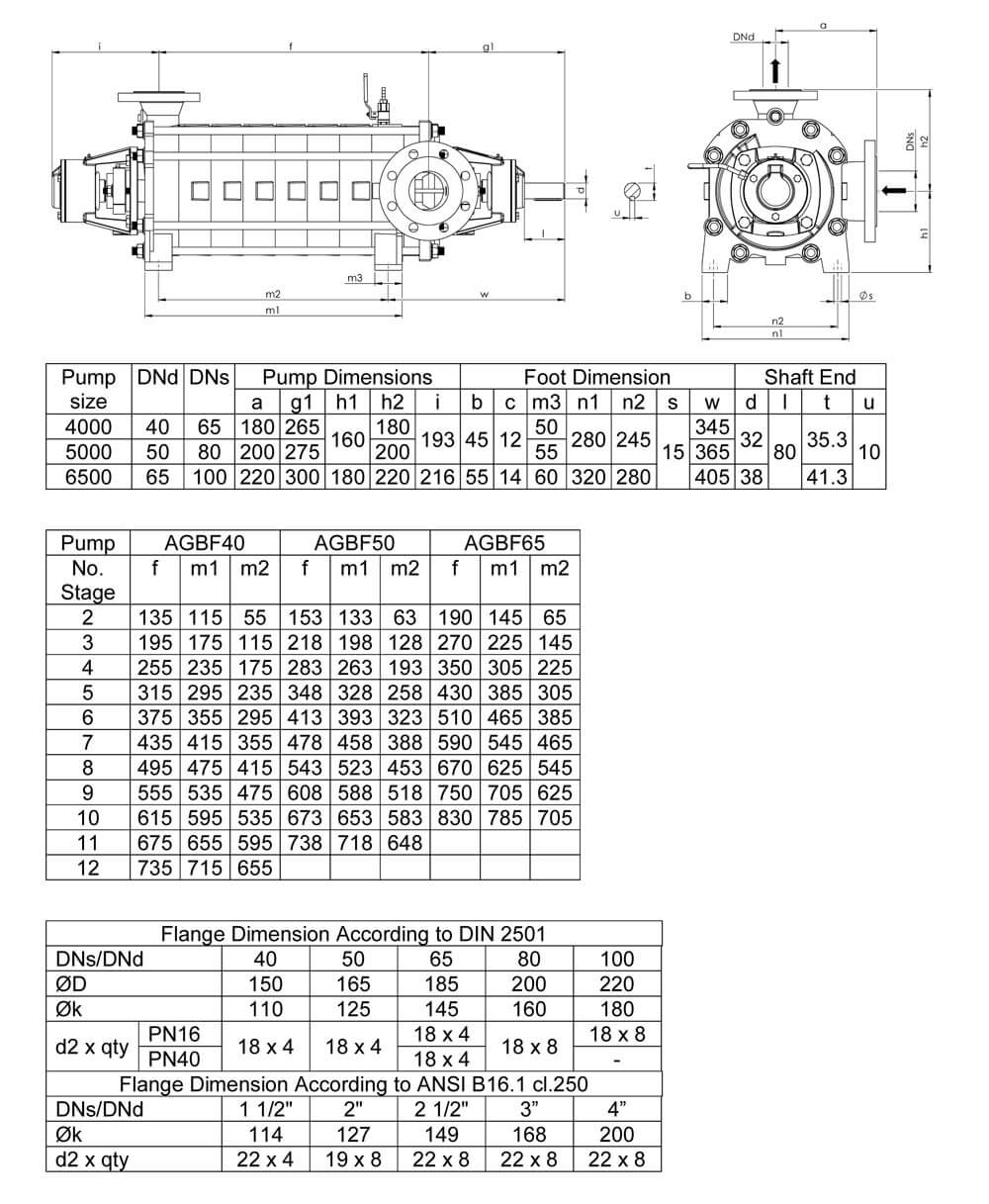

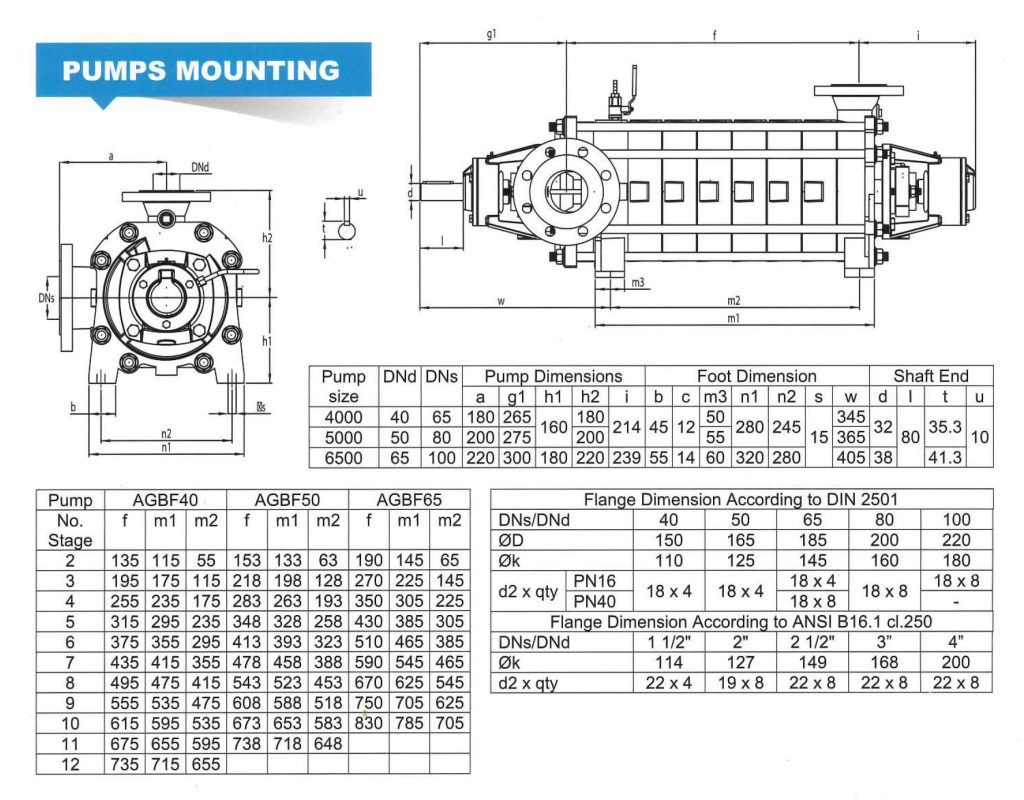

Pump Mounting
